Description
If you're passionate about
IT and electronics, like being up to date on technology and don't miss even the slightest details, buy
Switch TP-Link TL-SG2218 at an unbeatable price.

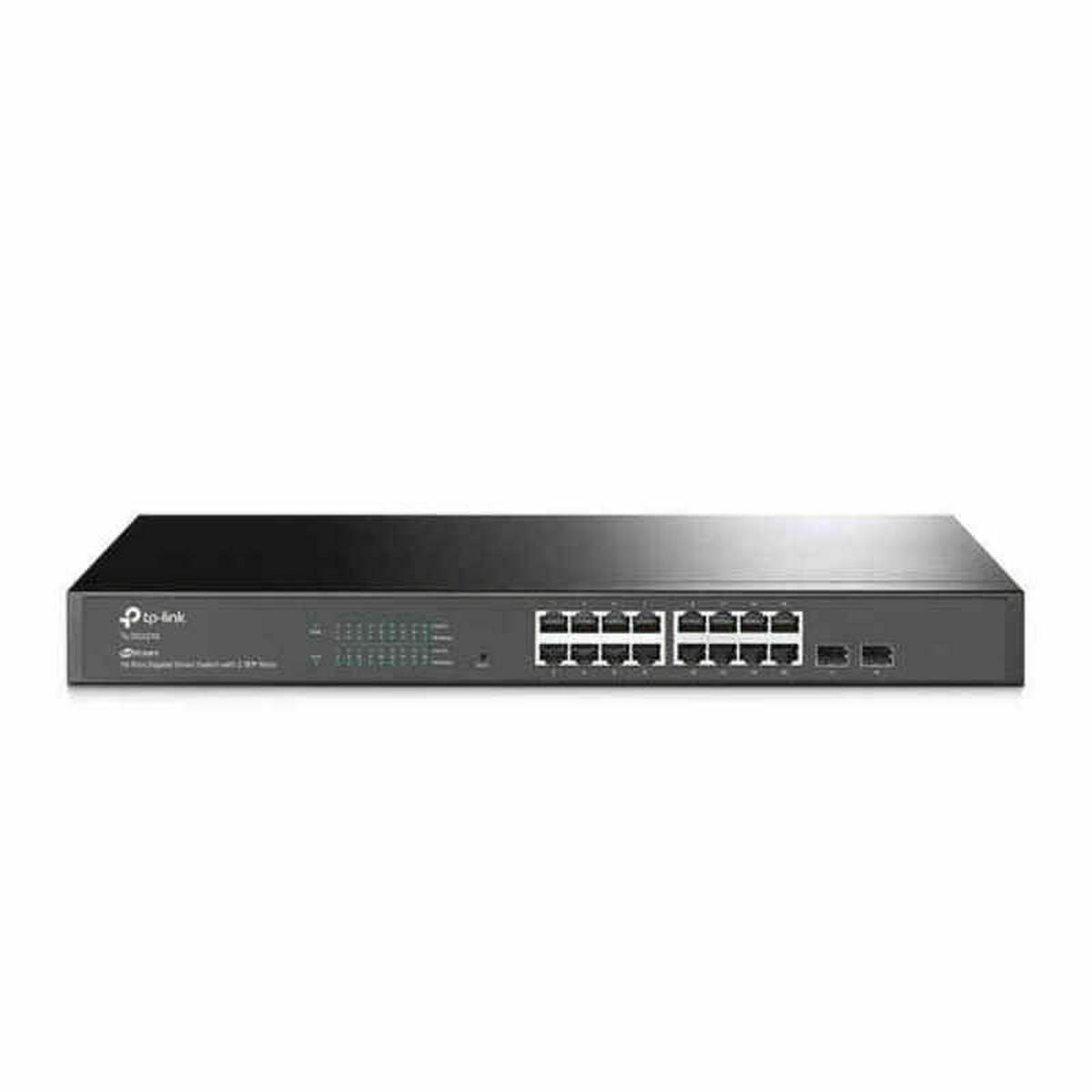

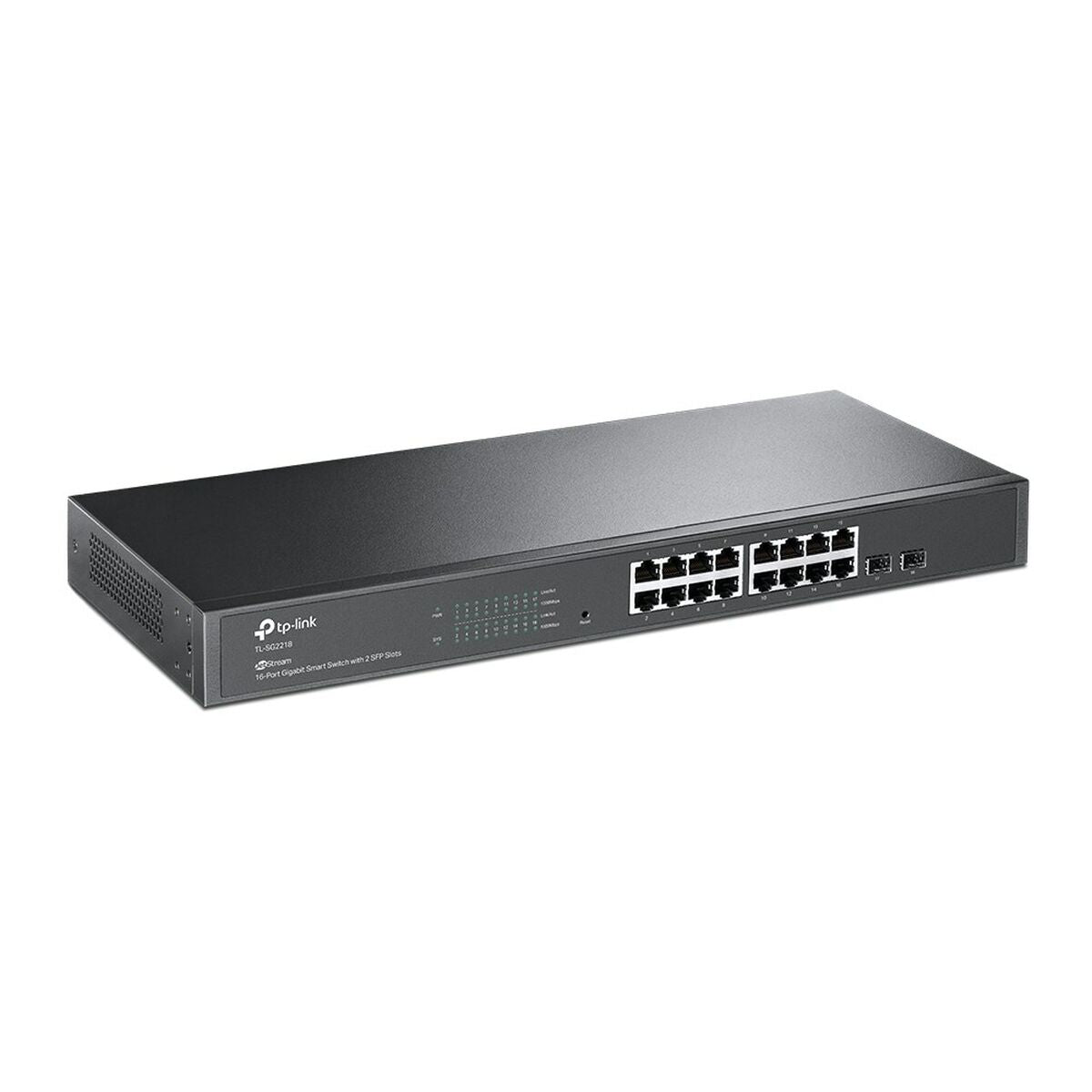

The managed switch TL-SG2218 from TP-Link is a network device designed for professional environments requiring stable and efficient connectivity. This device belongs to the JetStream series and features 16 basic RJ-45 Gigabit Ethernet switching ports (10/100/1000 Mbps), complemented by 2 Gigabit SFP slots that allow fiber optic connections for high-speed, long-distance links. Its managed nature and support for Layer 2 and Layer 2+ (L2/L2+) enable advanced configuration and network optimization, including traffic management, VLAN, QoS, and bandwidth control, allowing for a scalable and secure infrastructure. It has a switching capacity of 36 Gbit/s and a MAC address table with 8,000 entries, ensuring smooth and efficient performance even in high data demand environments. Its black design is intended for rack mounting, facilitating neat integration in data centers or network cabinets. Weighing approximately 1 kg and featuring a format that supports multiple mounting, it is suitable for installations requiring flexibility and durability. Additionally, it includes LED indicators for easy visual monitoring of port status and network activity, along with an installation guide for quick setup. This smart gigabit switch guarantees the quality and reliability typical of TP-Link, establishing itself as a solid choice for small and medium businesses seeking to improve the performance and management of their network infrastructure.
- Colour: Black
- Height: 4,4 cm
- Certificate:
- CE
- FCC
- RoHS
- CE & RoHS, FCC
- CE, FCC, RoHS
- Includes: LAN (RJ-45)
- Form factor: 1U
- Length: 18 cm
- Approx. dimensions: 44 x 44 x 8 cm
- Connections:
- RJ45 x 16
- RJ45
- Ethernet LAN
- Width: 44 cm
- Ports:
- Speed: 10/100/1000 Mbps
- AC input voltage: 100-240 V
- Feeding dish included: Yes
- Characteristics:
- LED indicator
- Installation guide included
- LED in operation indicator
- Voltage:
- 100-240 VAC, 50 / 60Hz
- 240 V
- 100 - 240 V
- Type: Switch
- Product with plug: Yes
- Type of plug: Plug EU
- Weight: 1 kg
- Holder: Multi-support
- Number of slots: 2
- AC input frequency: 50-60 Hz
- Working range for humidity: 10 % - 90 %
- Power supply: Iincluded
- Approx. temperature: -40º / 70º
- Safety: IGMP
Convenient Gigabit Switch
for a Complete Omada Network
JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
- Switch type: Managed
- Switch layer: L2/L2+
- Quality of Service (QoS) support: Y
- Web-based management: Y
- Cloud-managed: Y
- ARP inspection: Y
- Configuring Location Settings (CLI): Y
- System event log: Y
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- 10G support: N
- Port mirroring: Y
- Flow control support: Y
- Link aggregation: Y
- Rate limiting: Y
- Spanning tree protocol: Y
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Y
- Number of VLANs: 4000
- MAC address table: 8000 entries
- Switching capacity: 36 Gbit/s
- Forwarding rate: 26.8 Mpps
- Jumbo frames support: Y
- Jumbo frames: 9
- DHCP features: DHCP relay,DHCP server,DHCPv6 client
- Multicast support: Y
- Multicast Listener Discovery (MLD) snooping: Y
- Rack mounting: Y
- Product colour: Black
- Reset button: Y
- LED indicators: Y
- Certification: CE, FCC, RoHS
- Power supply included: Y
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 12.3 W
- Power over Ethernet (PoE): N
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 41.97 BTU/h
- Width: 440 mm
- Depth: 180 mm
- Height: 44 mm
- Cables included: AC, LAN (RJ-45)
- Quick start guide: Y
